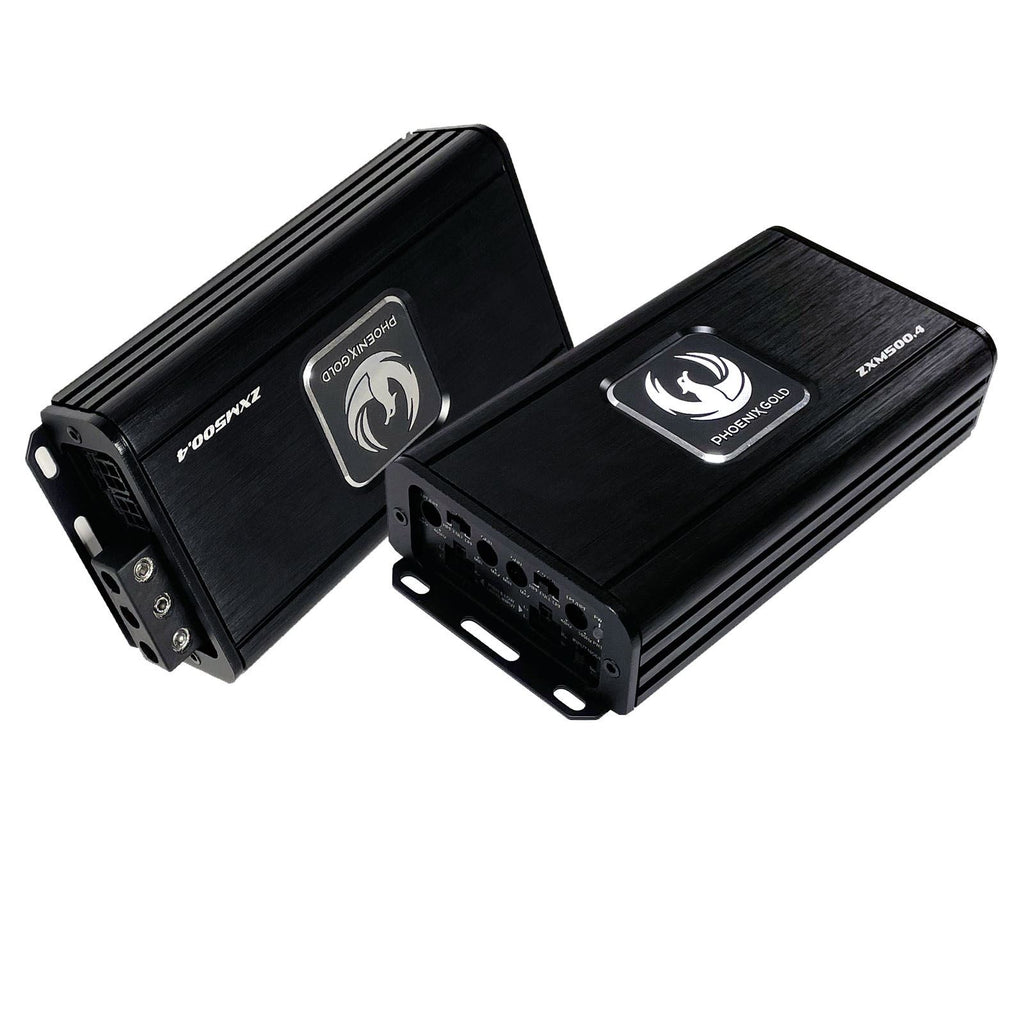

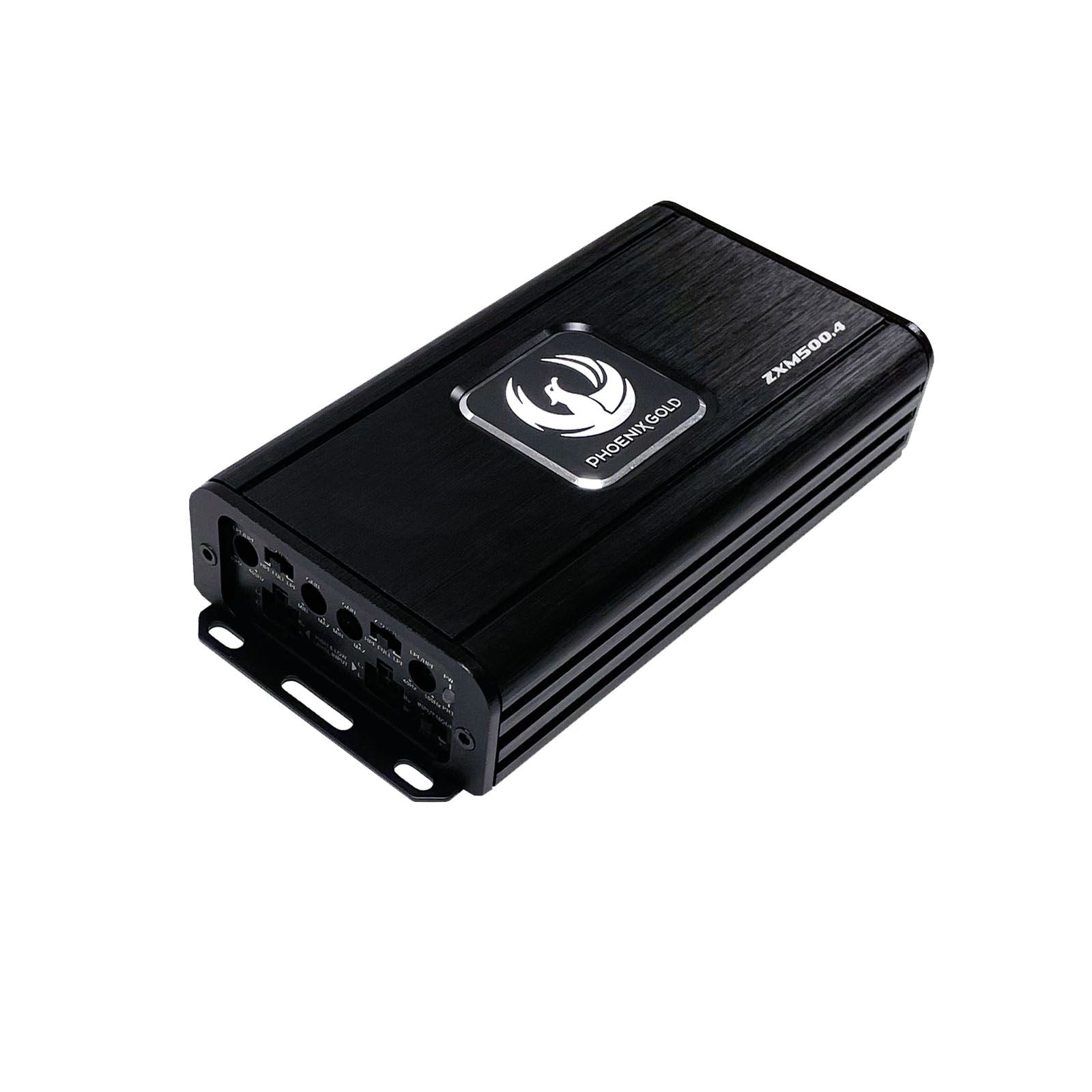

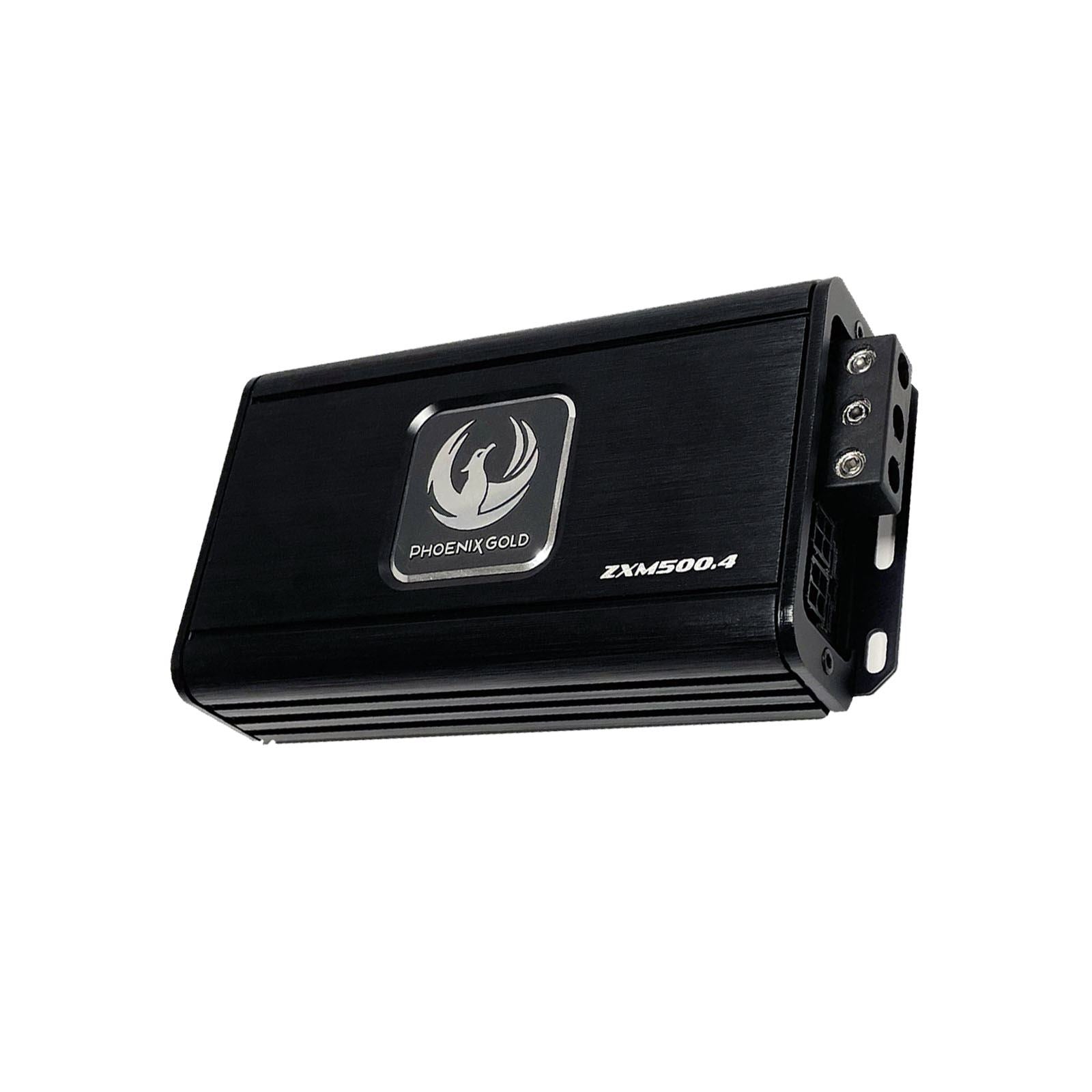

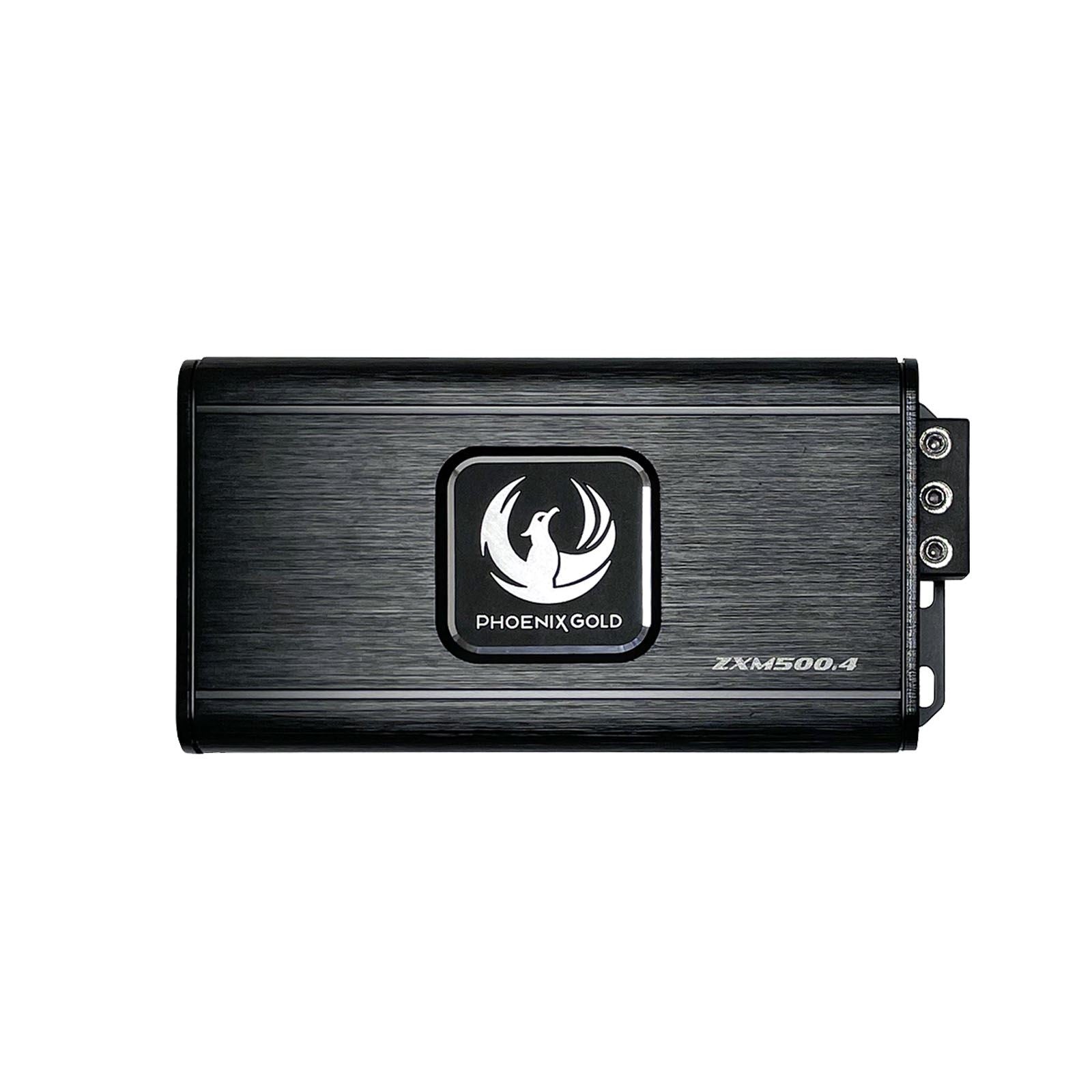

PHOENIX GOLD ZXM500.4 – 4 channel MINI Amplifier

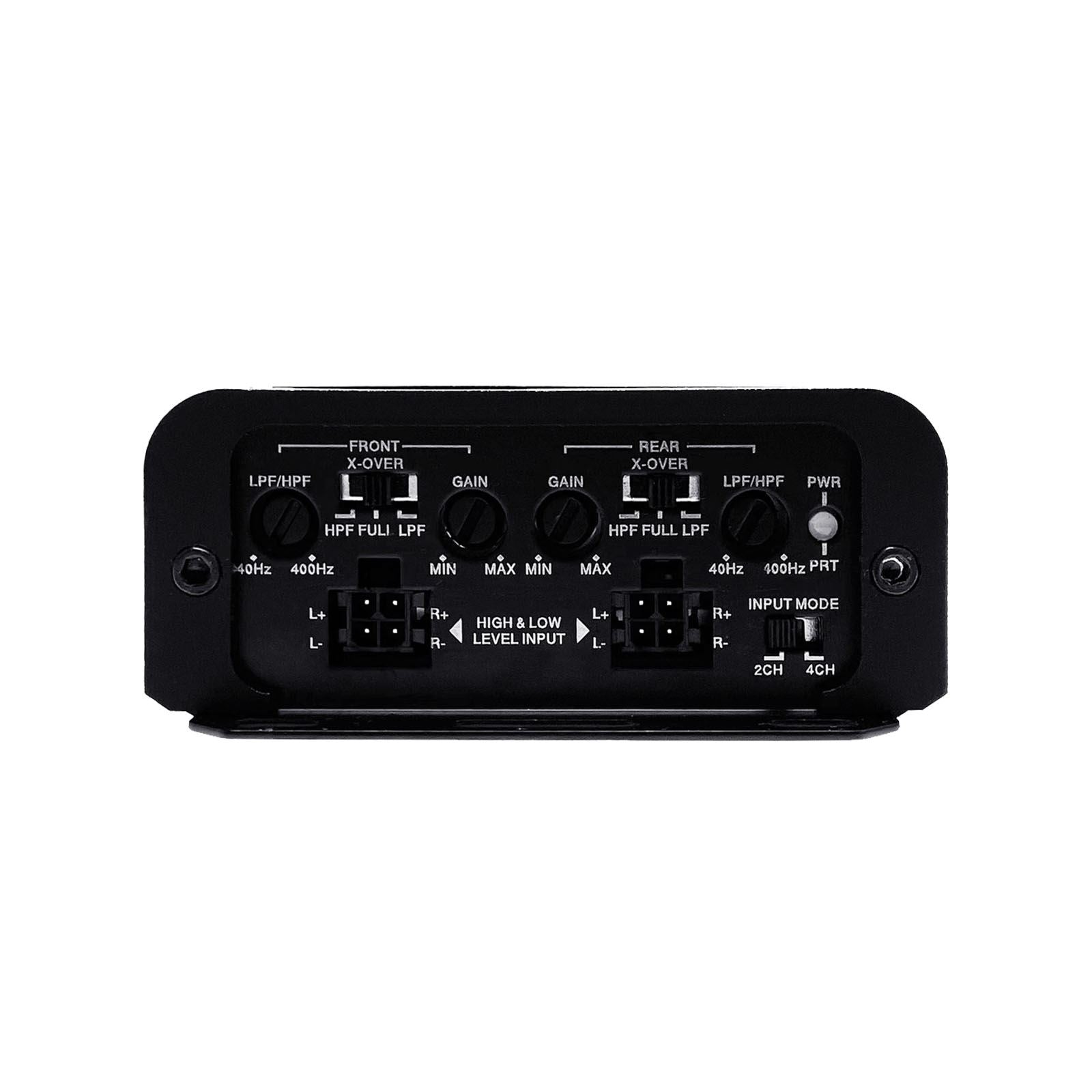

The ZXM500.4 is an impressive Class D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
- Massive Power & Performance
- Full Class D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal to noise ratio and FM noise rejection
- Built in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high level input
- Full adjustable HP & LP filter
Specifications
- Class D 4-Channel Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 125W x 4 @ 2Ohm
- 80W x 4 @ 4Ohm
- 250W x 2 @ 4Ohm bridged
- Frequency Response: 20Hz-20kHz
- Signal to Noise Ratio: ❯90dB
- Total Harmonic Distortion: ❮0.3%
- Low Pass Filter: 40Hz–400Hz (12dB/Oct)
- High Pass Filter: 40Hz–400Hz (12dB/Oct)
- High Level Input Auto Turn On

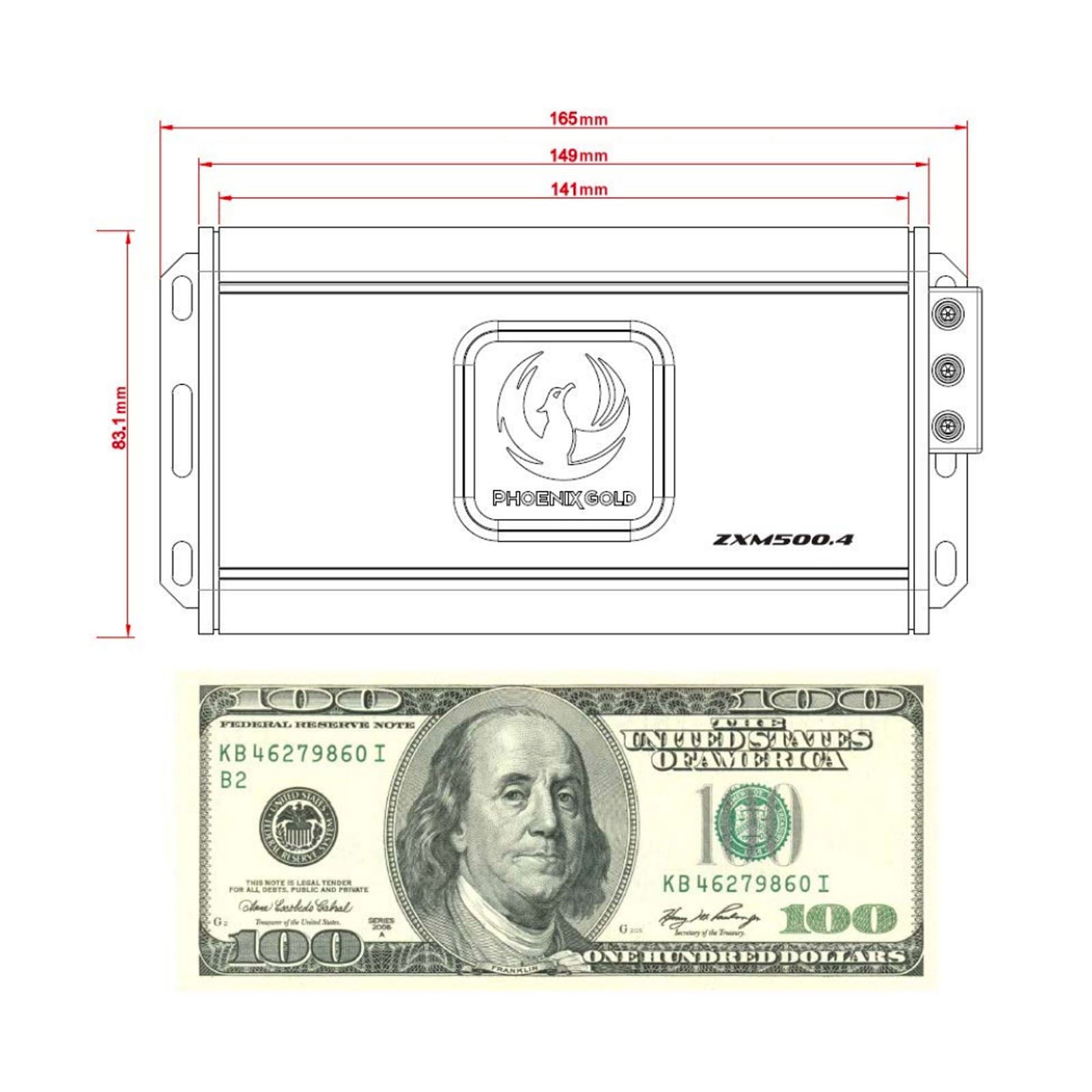

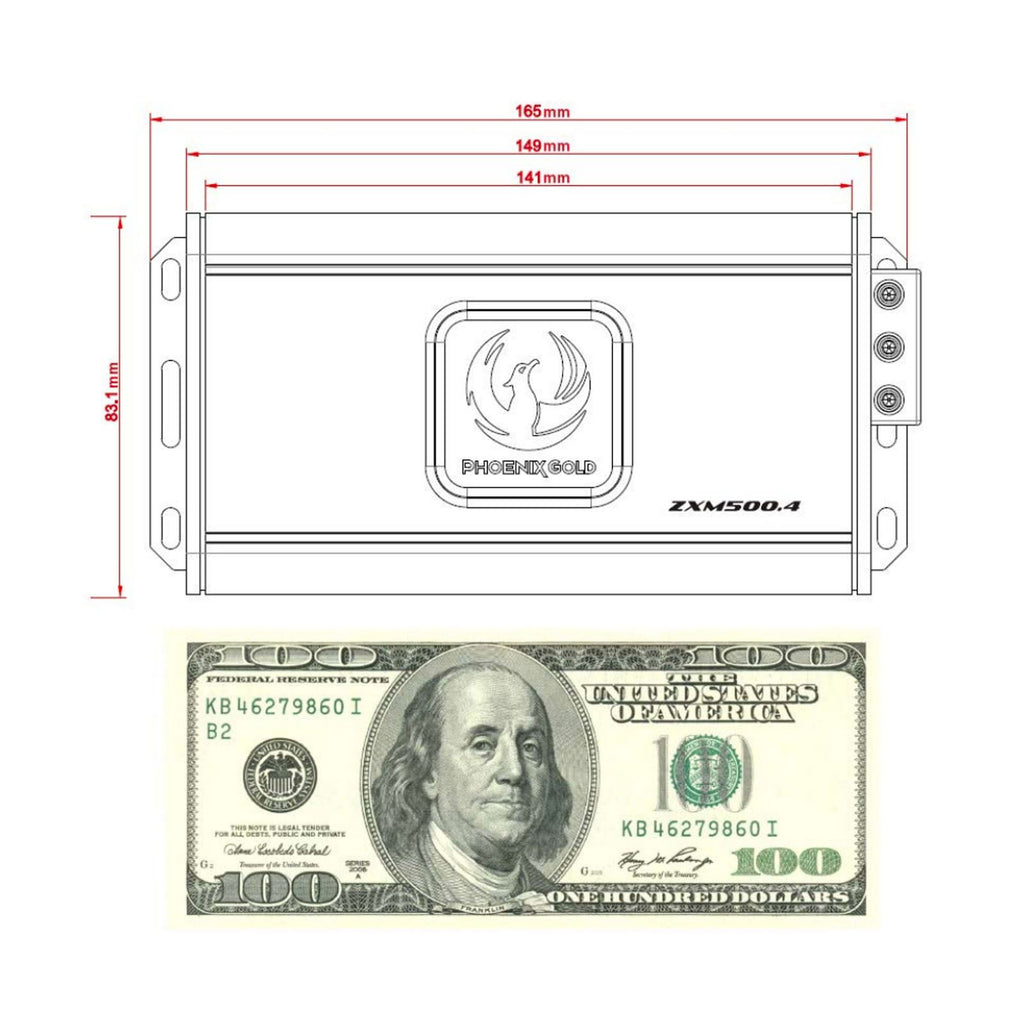

- Dimensions (LxWxH) 165 x 83.1 x 34.8mm
